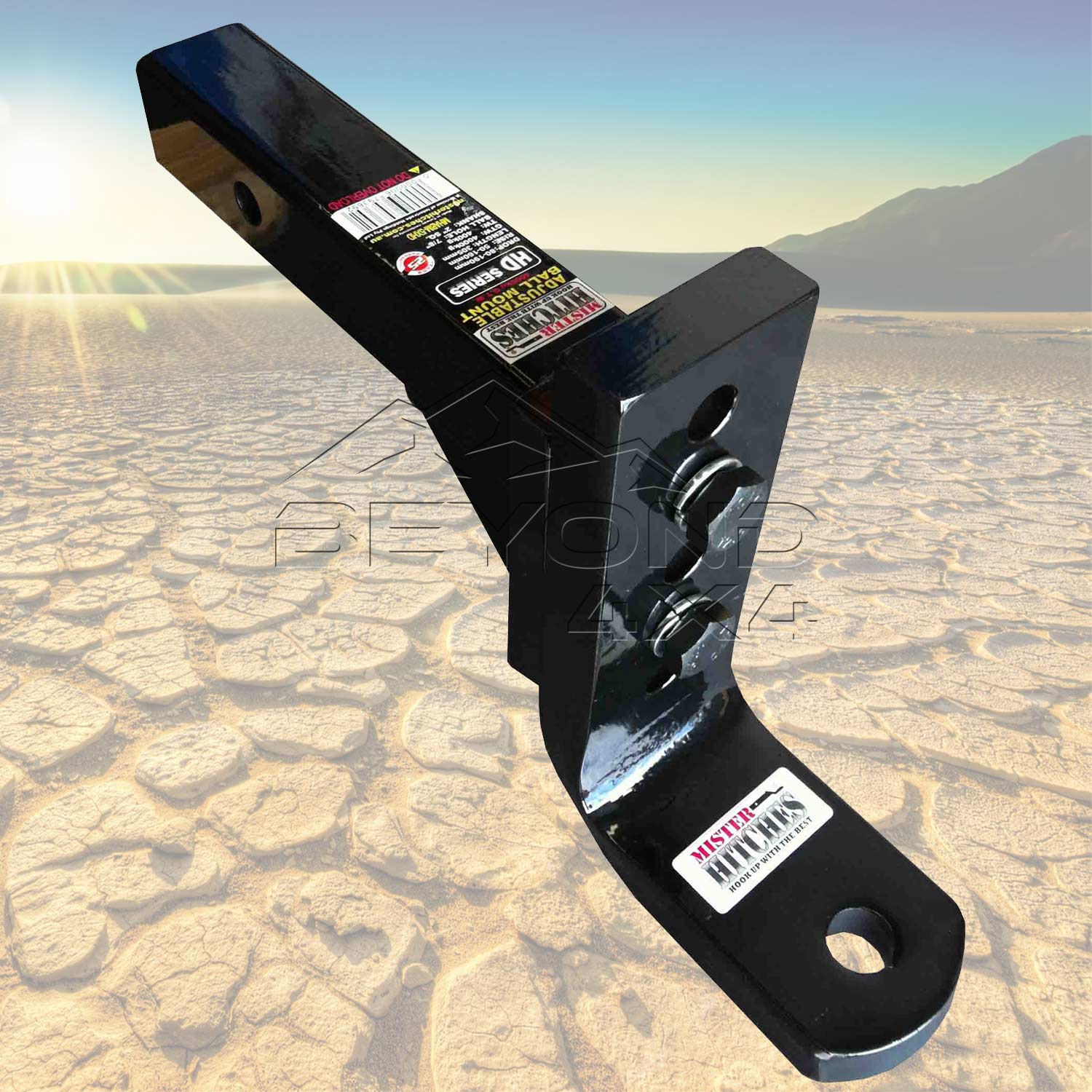

The MH-ABM-5D ball mount is the recommended hitch for those demanding a more robust ball mount than a standard version. Caters for a huge 3500Kg GTW, being made from a solid shank, with support gussets for extra strength.
This hitch offers a 5 hole, 12 stage adjustment (reversible with a 6 stage drop from 80-190mm & 6 stage rise from 50-165mm) and features a 19mm thick ball platform and backing plate for added strength.
- ADJUSTABLE & REVERSIBLE - 12 STAGES
- 6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/185MM
- 6 STAGES OF RISE - 50MM/80MM/100MM/110MM/130MM/165MM
- 9MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH
- USES 12.9 GRADE HIGH TENSILE 16MM BOLTS
- 25MM X 75MM HEAVY DUTY BALL PLATFORM.
- BLACK POWDER COATED FINISH
- ROBOTIC WELDED FOR CONSISTENT QUALITY
- CNC MACHINED FOR MAXIMUM ACCURACY
- MADE TOUGH FOR AUSSIE CONDITIONS
- FITS 50mm x 50mm (2" X 2") TOWBAR RECEIVERS
GROSS TRAILER WEIGHT: 4000KG
TONGUE WEIGHT: 400KG
BALL HOLE SIZE: 7/8"
MAX DROP: 180MM
MAX RISE: 145MM
LENGTH: 305MM (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE)
