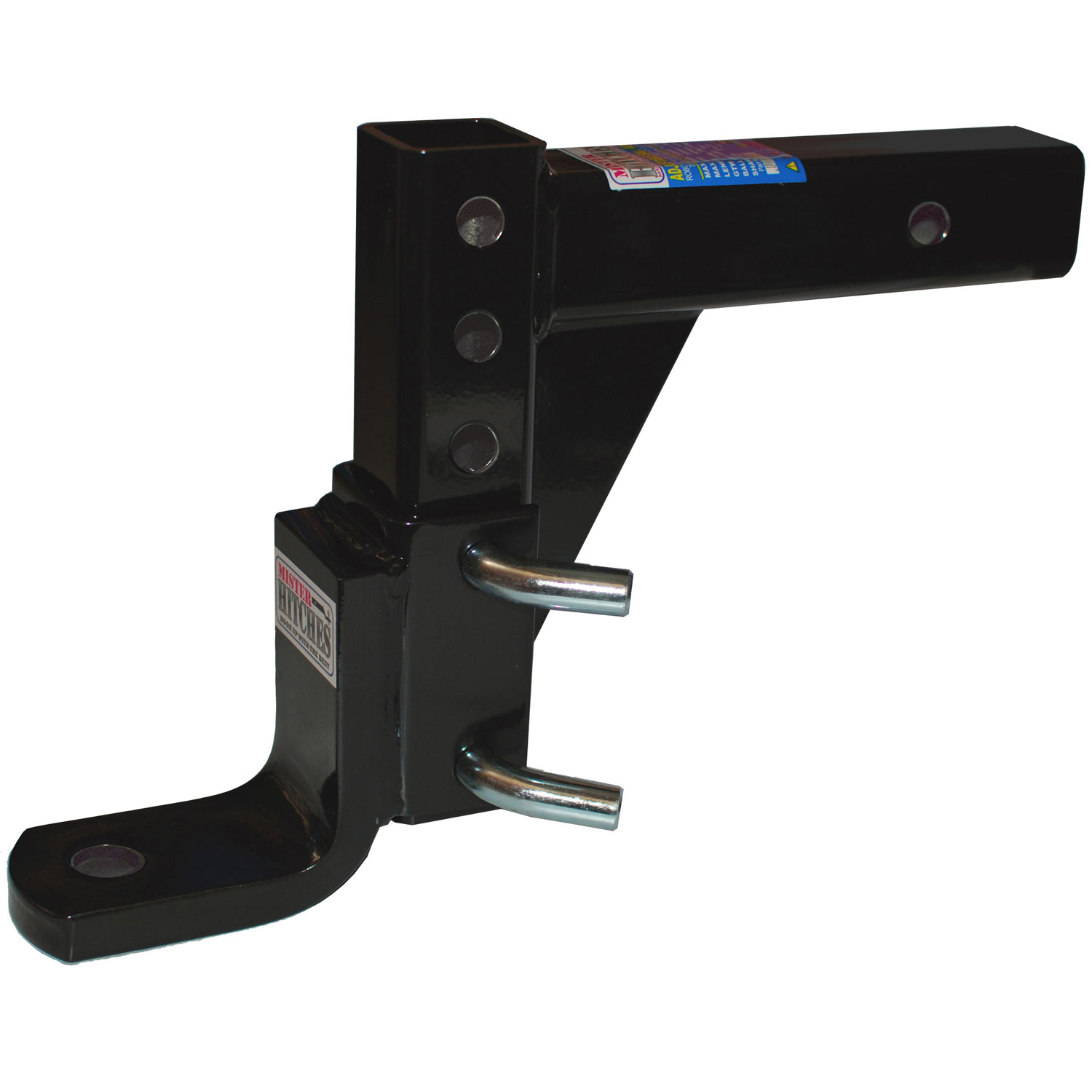

The MH-ABM ball mount is the recommended hitch for those requiring an adjustable height ball mount. Caters for a 2700Kg GTW.
- ADJUSTABLE & REVERSIBLE - 16 STAGES
- 432MM (17") ADJUSTABLE VERTICAL TRAVEL
- INCLUDES 2 x 5/8" HITCH PINS AND CLIPS
- BLACK POWDER COATED FINISH
- ROBOTIC WELDED FOR CONSISTENT QUALITY
- CNC MACHINED FOR MAXIMUM ACCURACY
- MADE TOUGH FOR AUSSIE CONDITIONS
- FITS 2" X 2" TOWBAR RECEIVERS
- TESTED IN THE U.S. TO COMPLY WITH SAE J684/V-5 STANDARDS
GROSS TRAILER WEIGHT: 2722KG
TONGUE WEIGHT: 272KG
BALL HOLE SIZE: 7/8"
MAX DROP: 232MM
MAX RISE: 200MM
LENGTH: 305MM (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE)
